Signage fabricators constantly hunt for reliable equipment to cut production time while keeping crisp, consistent letter profiles for illuminated channel letters. The CNC 3D channel letter bending machine has become a workhorse in modern sign workshops, automating the bending, forming and notching of aluminum and stainless steel strips for 3D signage letters.

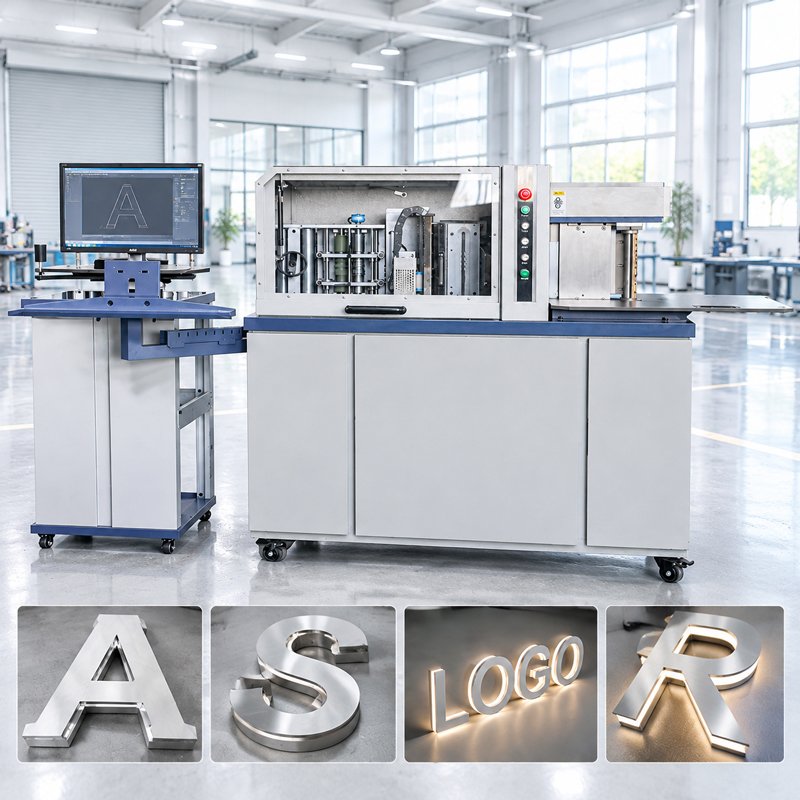

What Is a CNC 3D Channel Letter Bending Machine?
This all-in-one CNC equipment is engineered specifically for fabricating channel letter returns, the side walls of 3D sign letters. Unlike manual bending tools or basic 2D benders, its 3D capability handles complex contours, rounded corners, multi-angle bends and special-shaped letter outlines. It works with common signage raw materials: aluminum coils, aluminum strips, and thin-gauge stainless steel, widely used for LED illuminated signs, storefront logos, brand wall signs and outdoor advertising letters.
Controlled by dedicated CNC software, the machine imports letter vector files directly from design programs. Operators do not need repeated manual marking or trial bending, greatly lowering reliance on skilled workers and reducing human errors.
Full-automatic Processing Flow for Aluminum & Stainless Steel Channel Letters
- File Import & Parameter Setup Upload DXF letter drawings to the machine control system. Operators set material type, strip width, thickness, bending angle and cutting length. Separate parameter groups are saved for aluminum and stainless steel, as stainless steel demands higher bending force and adjusted notch depth.
- Material Feeding & Straightening Metal strip is auto-fed into the machine. Built-in straightening rollers flatten warped raw strips to guarantee uniform feeding, a critical step to avoid uneven letter heights or twisted sides.
- Notching / Grooving Precision V-notches are cut at bend positions. Partial depth notching lets the metal fold cleanly without cracking. Aluminum uses shallow notches; stainless steel requires carefully controlled notch depth to prevent fractures during sharp bends.
- CNC Bending & 3D Forming Servo-driven bending units execute programmed angles, forming straight segments, inner and outer rounded corners and irregular curves. 3D bending supports non-planar letter shapes, solving limits of traditional flat benders.
- Automatic Cutting & Discharge Once the whole letter outline is formed, the machine cuts the strip to length and ejects the finished channel letter return. Operators then assemble the bent profile with letter face and backing for LED sign production.
Core Technical Standards
- Compatible Materials: Aluminum strip (0.6–1.2 mm), stainless steel strip (0.5–1.0 mm)
- Bending Width Range: 20 mm – 150 mm
- Max Bending Speed: Adjustable according to material hardness; slower speed recommended for stainless steel
- Control System: Dedicated CNC controller, supports DXF file import
- Drive System: Servo motors for feeding, notching and bending to ensure repeat accuracy
- Positioning Accuracy: ±0.1 mm
- Corner Types: Sharp angle, rounded corner, S-curve and custom 3D special contours
- Safety Standard: Emergency stop, protective cover and overload protection
Key Advantages for Sign Manufacturers
- Higher Consistency: Every letter return maintains identical dimensions, reducing fitting gaps during assembly. This is especially valuable for large sign orders with dozens of identical letters.
- Labor Savings: One operator can manage the machine, replacing multiple workers doing manual bending and marking.
- Material Waste Reduction: Precise programming minimizes scrap from trial bends, which cuts raw material costs for expensive stainless steel.
- Broader Design Freedom: Shops can accept orders with complex 3D letter shapes that are nearly impossible to produce efficiently by hand.
- Stable Long-run Production: Servo structure holds accuracy through long shifts, suitable for both small custom orders and mass commercial signage projects.
Material Selection Tips
Aluminum remains the most popular option. It bends easily, weighs less and resists rust, perfect for most indoor and outdoor illuminated channel letters. Stainless steel delivers premium texture and superior corrosion resistance for luxury brand signs, coastal locations or high-end storefronts. Note stainless steel has higher tensile strength; users must tune notch depth and bending speed to avoid cracking.
Common Application Scenarios
LED backlit channel letters, front-lit 3D logo letters, hotel reception wall signs, retail shop front signage, company brand name signs, exhibition booth signs and custom artistic 3D letter projects.
Final Notes
For sign factories upgrading production lines, the CNC 3D channel letter bender is not just an automation tool. It improves product quality, shortens lead times and expands the range of sign projects you can quote. When purchasing, always verify machine accuracy, after-sales service and software compatibility with your existing design workflow.
