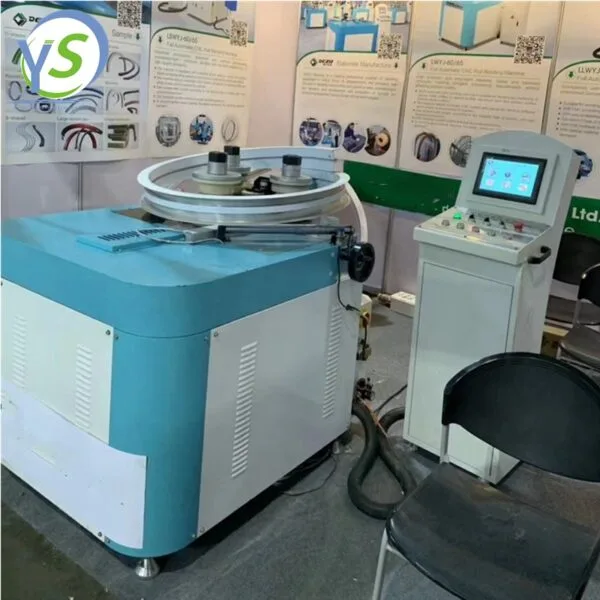

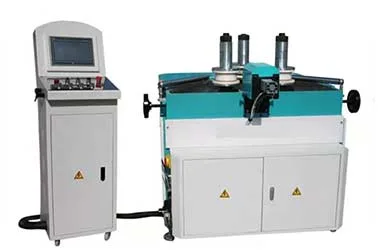

Hydraulic Aluminium Window Fabricating Machine Rolling Bending Machine

Original price was: $7,900.00.Current price is: $7,800.00.

Full Automatic 3-Axis CNC Aluminum/PVC/UPVC Profile Rolling Bending Machine

  1. The machine is widely used in bendingforming of standard and non-standard metal profiles in various industries such as building doors and windows curtain wall, automobile industry, decoration,high-speed rail, aerospace,outdoor advertising,etc., such as S-shaped,U-shaped,C-shaped,round,oval and multi-radius forming of the same profile.
  2. According to therequirements of pro-file rolling shape, it is convenient to convert three axes and four axes.
  3. The machine adopts automaticnumerical control system and special bending forming soft-ware,which is simple and convenient to operate.
  4. Adopt numerical control hydraulicsystem to ensure positioning accuracy.
  5. According to the springback data of profile forming, the machining accuracy is high after systematic compensation.
Technical Parameter
ModelCNC-20T
Power 380V 50HZ ( can be  customized )
Saw head motor10KW
Working pressure0.2mpa
Min. diameter of bending100mm
Max. width of profile150x150mm
Max. diameter of rolls350-750mm
Lower shaft center-dimensions200mm
Hydraulic cylinder pressure20T
Roller-holding shaft diameter65mm
Rotation speed of shaft1~8r/min
Positioning precision0.01mm
Top roll runout200mm
Torque2000N.m
Dimensions1300mm*1100mm*1500mm
Weight1000 kg

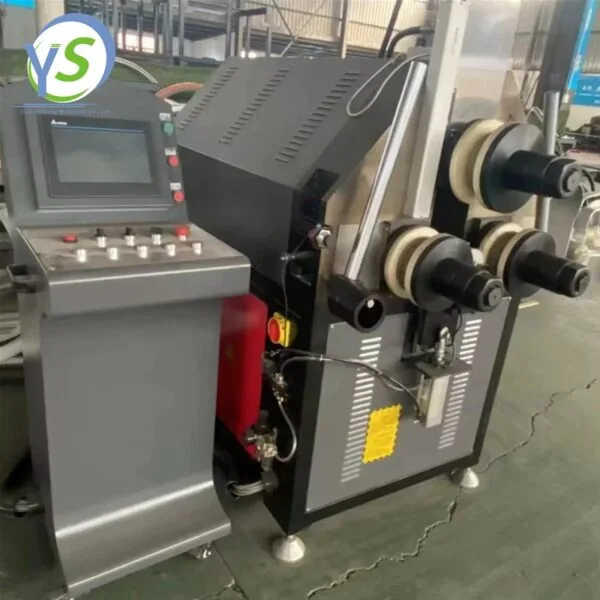

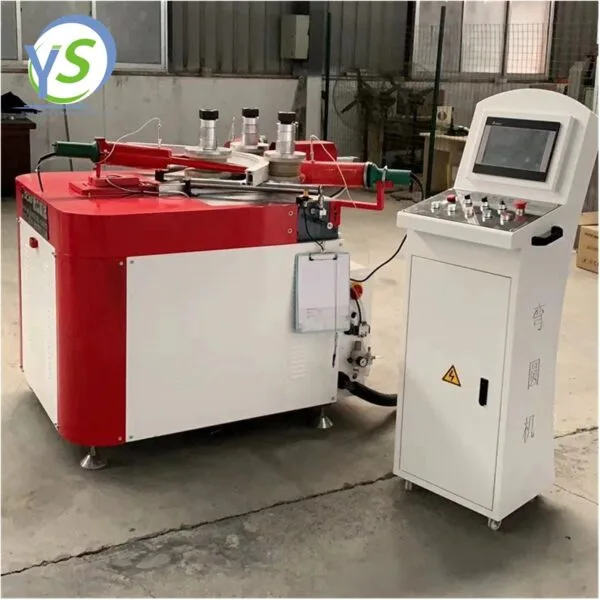

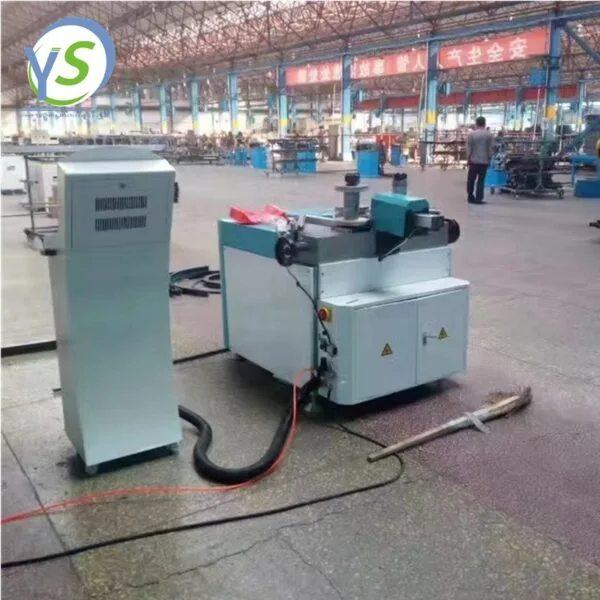

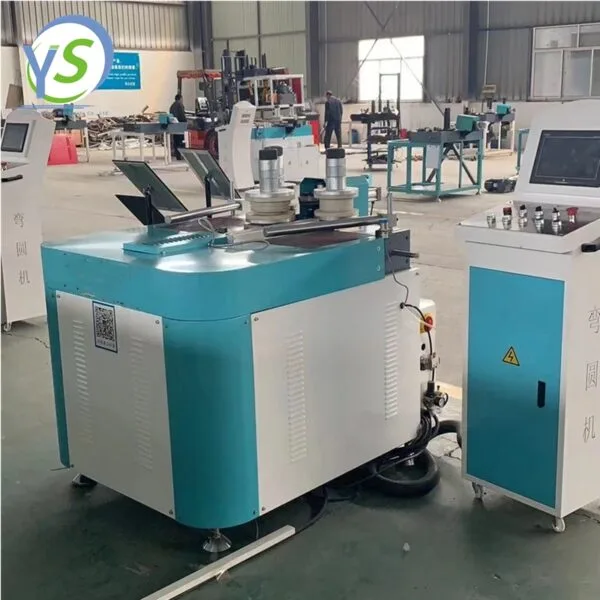

Machine Details

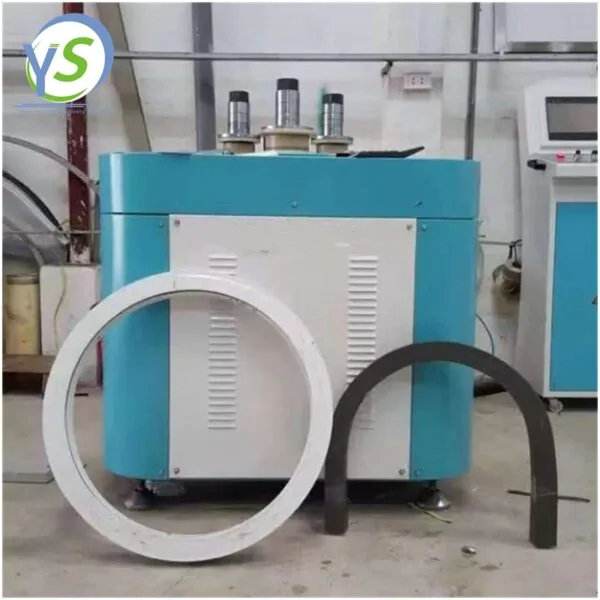

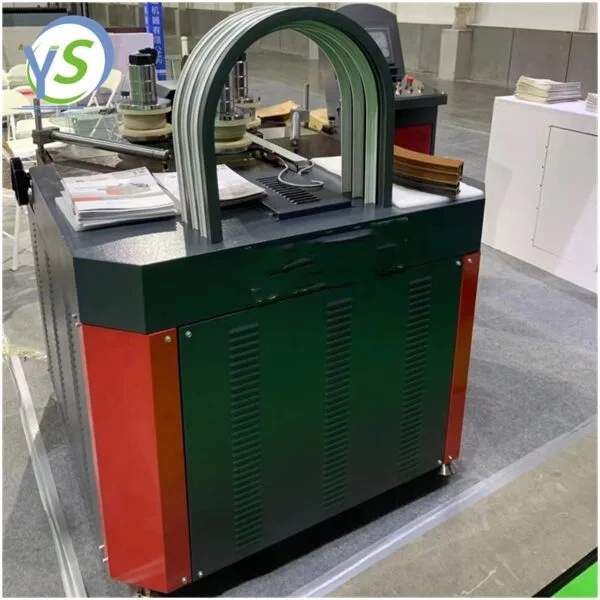

Product Application

About Jinan Yusheng Machinery

Jinan Yusheng Machinery Co., Ltd. is dedicated to the cutting-edge technology of aluminum profiles, doors, windows, and curtain wall processing equipment, as well as the practical application of processing sites. It has a team of experienced and expert employees in the industry, equipped with a large mechanical processing workshop with complete functions. It is a high-tech enterprise that integrates research and development, production, sales, and service. Since its establishment, the company has been committed to the research and development of energy-saving door and window technology, providing complete assembly equipment for aluminum profiles, ordinary plastic steel profiles, and high-end aluminum insulated glass production lines to the industry. The products cover industries such as industrial aluminum profiles, door and window curtain walls, rail transit, aerospace, industrial manufacturing, and household appliances. The company relies on strong technical expertise, rigorous production and processing, and a complete range of equipment to meet the needs of different investment scales. It can also customize personalized products of different grades according to customer requirements.

  Creating value for users is our commitment, taking responsibility for each product is our responsibility, and customer satisfaction is the ultimate goal of our services; Winning customer, employee, and social satisfaction is the driving force behind our progress.

  With high-quality products and an efficient service team, Yusheng Machinery looks forward to providing you with high-quality products and services!

Certifications

Our Clients

Packing&Delivery

Service

1). At least 1 year from the date of completion of the commissioning.

2). Free consultation service before, during, and after sales;

3). Free project planning and design services;

4). Free debugging of equipment until everything is functional;

5). Free management of equipments long distance shipping;

6). Free training of equipment maintenance and operating personally;

7). Provide 1 year complete warranty and life-time maintenance service;
